High Hardness 2mm To 250mm Optical Glass Lens , BK7 Plano Concave Cylindrical Lens

Product Categories
Shanghai Advance Optical-Electronics Technology Co., Ltd
Contact Now

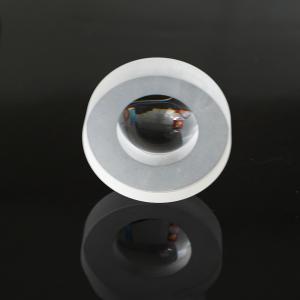

High Hardness 2mm To 250mm Optical Glass Lens , BK7 Plano Concave Cylindrical Lens

Place of Origin : Shanghai, China

Brand Name : Advance

Model Number : 001

Packaging Details : Vacuum+EVA+Carton

Supply Ability : 10000000 Piece/Pieces per Month

MOQ : 10 Pieces

Price : $100.00/Pieces 10-99 Pieces

Lenses Color : Clear

Material : BK7 and other optical glass,quartz,sapphire,Ge,Si,ZnSe,CaF2 etc

Focal length : custom

Diameter tolerance : +/-0.005mm

Surface accuracy : N=1~0.5

Centerthickness tolerance : +/-0.001mm

Focal length tolerance : +/-1%

Surface quality : 10/5~60/40

Application area : Imaging,Lighting,Laser etc

Port : shanghai

Contact Now

Factory Direct Sales 2-250mm High Hardness Plano-Concave Lens for Optical

Cylindrical lenses are designed to focus light into a straight line, rather than to a single point. As the name suggests, the lens surface has a cylindrical shape rather than the usual spherical which allows for one dimensional shaping of light along a line. Cylindrical lenses are typically either plano-concave or plano-convex, designed to expand and focus light respectively, and can be supplied in either diameter or rectangular shape for ease of mounting.

Cylindrical lenses are often used to change the profile of laser beams, for example to correct for astigmatism and ellipticity in diode lasers or to generate lines from single mode lasers.

Specification
Materials BK7 or other optical glass,quartz,sapphire,Ge,Si,ZnSe,CaF2 etc
Diameter 1.5~300mm
Radius R0.8mm-∞
Focal length -30000mm~+30000mm
Center thickness tolerance +/-0.01mm
Diameter tolerance +/-0.005mm
Focal length tolerance +/-1%
Surface accuracy N=1~3
Irregularity ΔN=0.1~0.5
Decenter 3''~1''
Surface quality 10/5~60/40
Coating Upon request
Application area Imaging,Lighting,Laser etc

High Hardness 2mm To 250mm Optical Glass Lens , BK7 Plano Concave Cylindrical Lens
High Hardness 2mm To 250mm Optical Glass Lens , BK7 Plano Concave Cylindrical Lens
Recommend Products
High Hardness 2mm To 250mm Optical Glass Lens , BK7 Plano Concave Cylindrical Lens
Company Profile
High Hardness 2mm To 250mm Optical Glass Lens , BK7 Plano Concave Cylindrical Lens

Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise,officially established in September 2009,the plant site located in Qingpu Industrial Park, Shanghai, only half an hour's drive from Shanghai Hongqiao International Airport. The company gathers several excellent technicans in optical industry, has comprehensive supporting capabilities such as optical mechanical and electrical design, processing and sales services, and wholeheartedly provides each customer with high-quality and convenient products and services. Business scope: optical mechanical and electrical module development, precision optical element processing, camera lens design and processing, optical design and optical path optimization solution, technical consultation and after-sales service. Application fields: machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, military equipment, laser etching, special lighting, scientific research institutions, etc. Company Advantages:

1. Have comprehensive design, production and sales capabilities, and provide customers with one-stop convenient procurement services; 2. It has tens of thousands of optical molds and samples, which can provide customers with fast proofing services with low cost; 3. Be able to participate in the customer's new product research and development early, provide feasible plans and suggestions, and make the project less detours;
Certifications
High Hardness 2mm To 250mm Optical Glass Lens , BK7 Plano Concave Cylindrical Lens
Exhibition
High Hardness 2mm To 250mm Optical Glass Lens , BK7 Plano Concave Cylindrical Lens
Packing & Delivery
High Hardness 2mm To 250mm Optical Glass Lens , BK7 Plano Concave Cylindrical Lens
High Hardness 2mm To 250mm Optical Glass Lens , BK7 Plano Concave Cylindrical Lens
FAQ
Q: What are your main products or Which fiefd do your products be used?
A: We are specialized in optical design.optical element processing,Lenses assembly,Such as Spherical lens,Aspherical
lens,Cylindarlens,Reflector mirror,Filter,Rod lens,Camera lenses etc,and our products are wide used to these filed such as
imaging,Laser,Lighting etc.

Q: What's your advantage?
1. We have about ten thousands optical modules and fixturesin stock,and employ several outstanding technicians and manager.that
will enable to provide customer excellent quality in shortleadtime,also can save the plenty of develop cost for customer.
2. We can help customer to optimize the optical system whichthey dislike,and provide the free optical solution or suggestion.
Q: What's your MOQ?
A: 10pcs.
Q: What's your leadtime?
A: 1day for inventory and 25~35days for the new project.

Q: What's your shipping type?
A: Usually by Fedex,DHL,TNT,EMS etc or Customer appointed.

Q: What's the payment condition?
A: T/T,L/C,VISA,Paypal,Alipay or Negotiation.

Q: What's your quality guarantee period?
A: Three years.
